Overview

Scarlet brings highly requested features to an affordable TKL including a seamless exterior, USB-C daughterboard, multi-layout hotswap PCB, winkey and winkeyless layouts, top mount and o-ring gasket mount, and a design free of any branding.

Extras Sale Info

Scarlet extras are currently being rolled out slowly starting with black, E-white, and blue winkey cases in small quantities. Colors and layouts will continue to be rolled out over the coming weeks as Scarlet extras go through QC.

Stock Grade Expectations

A-stock cases will be free of any cosmetic defects visible after the keyboard is fully assembled.

B-stock cases have small cosmetic defects that are difficult to see from a typical seating position, sometimes with defects only on the sides or bottom surface.

Extra Parts

Build Guide

Technical Specifications

Scarlet

Scarlet brings highly requested features to an affordable TKL including a seamless exterior, USB-C daughterboard, hotswap PCB, winkeyless layout, top and gasket mount, and an exterior design free of any branding.

Modernized Design

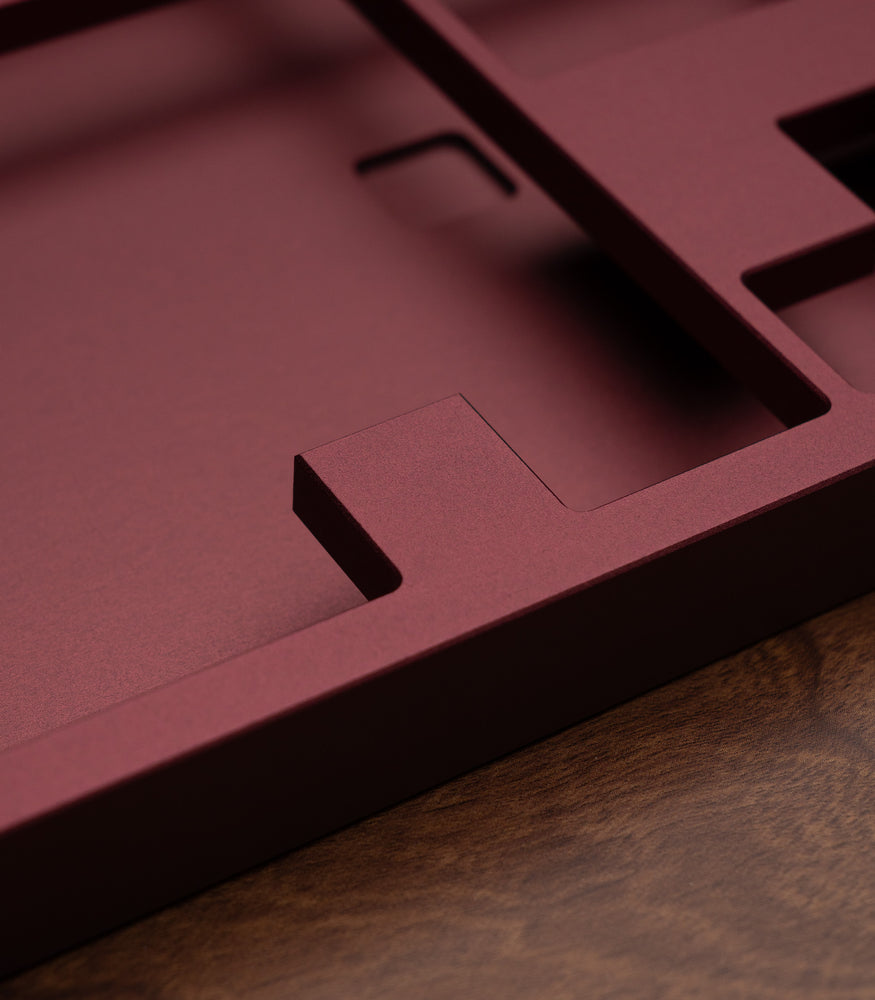

A seamless aluminum enclosure featuring no branding, thin side bezels, and an optional winkeyless top case for a vintage aesthetic — fit to be the centerpiece of any workspace. And the centered USB-C daughterboard provides a symmetrical cable setup with quick and inexpensive repairs.

Dual Mounting System

Scarlet allows you to customize the way it feels and sounds by offering the two most popular mounting styles — top mount and gasket mount. It delivers a soft and comfortable typing experience, making the keyboard fade into the background so you can focus on creating your best work.

Gasket mount.

A silicone o-ring wraps around the plate and PCB, cushioning the keystrokes for a softer typing experience, and absorbing vibrations for a deep and quiet sound profile.

Top mount.

The switch plate is fastened to the top case with screws, delivering a distinct, tactile response. Compliment the typing experience with the optional aluminum plate add-on.

Multi-layout hotswap PCB.

Designing a quick, simple, and beginner-friendly assembly process was made possible with Kailh hotswap sockets without compromising on layout compatibility. One PCB supports both 6.25u and 7u spacebar, and double flex-slots provide a soft and cushioned typing experience when paired with a half-plate. All PCBs come with VIA Configurator compatible firmware installed out of the box.

Ultra-soft POM plate.

A matte black POM plate is included with each Scarlet kit, chosen for its deep, muted sound profile, and soft, flexible typing experience. An optional aluminum plate can be purchased for an enhanced tactile response while retaining the unique sound signature of your switches.

What's Included

Technical Specifications

What's Included

Scarlet keyboard case

POM plate

Hotswap PCB

USB-C daughterboard with JST-SH cable

Silicone o-ring gasket (60A)

M2x3 mm daughterboard screws

M2x4 mm plate screws

M2x6 mm case screws

Silicone bumpon feet

Size and Weight

Width: 13.96 inches (354.7 mm)

Depth: 5.36 inches (136.1 mm)

Height: 0.72–1.33 inches (18.8–33.8 mm)

Weight (assembled): 4.1 lbs (1.86 kg)

Angle: 7 degrees

Materials and Finishes

Aluminum, available in black, E-white, blue, red, lilac, and rose gold.

Plates

POM, available in matte black

Aluminum, available in E-black

Top mount and o-ring gasket mount

PCB

Kailh hotswap sockets

ESD and over-current protection

USB-C Unified C3 daughterboard

JST-SH cable (150 mm)

QMK and VIA Configurator compatible firmware

AT90USB646-MU microcontroller

FR4 Tg 170–180

ENIG surface finish

Matte black solder mask

Multi-layout compatibility

PCB Layout

Gasket

Thickness: 0.16 inches (4.0 mm)

Inner diameter: 10.24 inches (260 mm)

Material: Shore 60A white silicone, Shore 20A available separately.
