[Coming Soon] Phantom Keyboard Kit

Sale price

Regular price $189.00
( / )

Introducing Phantom — an o-ring gasket mount 65% custom keyboard kit featuring an ultra-soft gasket for a comfortable typing experience starting at $189. Its seamless and screwless all-aluminum enclosure paired with a centered USB-C port delivers a simple and modern aesthetic that will fit into any desk setup.

Round 2 Release Date

This product is currently in manufacturing and orders are expected to ship in early June. 290 units will be available in-stock, and will not be available again once sold out.

What's Included

  • Keyboard case
  • FR4 plate
  • POM plate
  • Hotswap PCB. Please place a note at checkout or contact us to switch to a solder PCB.
  • USB-C daughterboard
  • 30A silicone gasket
  • Rubber bumpon feet

The package is a custom keyboard kit, not a fully functional keyboard unit or all-inclusive kit. This does not include switches, stabilizers, keycaps, lube, USB cable, or any other item not listed above.

    Layouts

    Hotswap

      Phantom hotswap PCB layout

      Solder

      Phantom solder PCB layout

      Technical Specifications

      Size and Weight
      Height: 0.73–1.15 inches (1.86–2.93 cm)
      Width: 12.39 inches (31.475 cm)
      Depth: 4.34 inches (11.02 cm)
      Weight (assembled): 2.54 lbs (1,152 g)
      Angle: 6 degrees

      Materials and Finishes
      Aluminum, available in E-black, E-white, and anodized blue.

      Plate
      FR4, available in matte black with gold edge-plating.

      POM, available in matte black.
      O-ring gasket mount, friction-fit.

      PCB
      Available in solder and hotswap
      FR4 Tg 150–160, matte black solder mask and ENIG surface finish

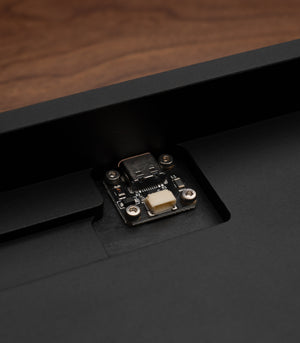

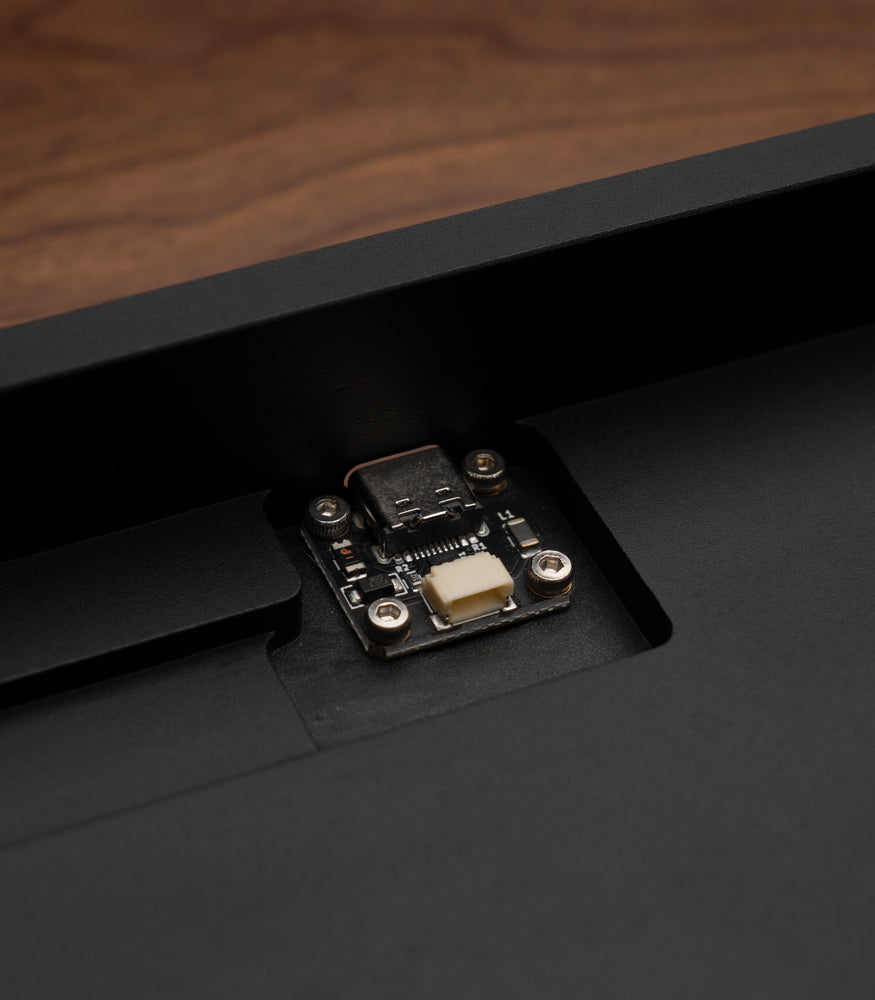

      USB-C Unified C3 daughterboard
      QMK and VIA firmware

      Gasket
      Thickness: 0.14 inches (3.55 mm)
      Inner diameter: 7.28 inches (185 mm)
      Material: Shore 30A silicone
